제품안내 HOME > 제품소개 >Wire Rope Accessories

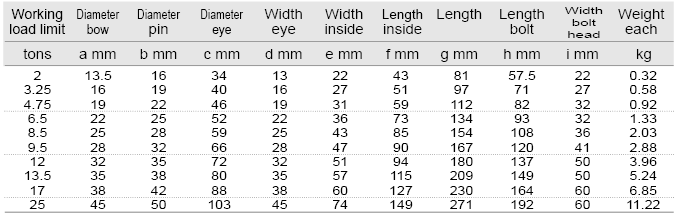

Wire Rope Accessories l Green Pin Shackle l G-4154

Green Pin Trawling & Sunken Hole Shackles
dee shackles with square headed screw pin

• 재 질 : 몸통과 핀 - high tensile steel(고장력강(高張力鋼)), Grade 6, Q/T
• 안전율 : MBL = 6 x WLL
• 표 준 : US Fed. Spec. RR-C-271, Grade A
• 표 면 : 용융도금
• 성적서 : a work certificate, 재질 증명서, 제조자 성적서 제공가능 및 EC Declaration of onformity
